TLCH Cast Iron Truck Lock

SKU
TLCH

This Cast Iron Truck Lock enables you to retrofit a brake to any mobile trolley or equipment. It is the heaviest and most robust in the range of truck locks. Designed to be fitted to the underside of the equipment,... Read More

In stock
£97.28 £81.07
  • Price
  • 1 + £97.28 £81.07
  • 20 + £89.50 £74.58
  • 50 + £81.72 £68.10
  • 100 + £73.93 £61.61
£97.28 £81.07
Qty
Trade Or Bulk Enquiry
CAD Request
CAD Request

To receive a CAD drawing of this product please enter your details below:


Frequently bought together

  1. Cast Iron Truck Lock
  2. +
  3. Cast Iron Truck Lock
  4. +
  5. 160mm Swivel Castors with a Black Rubber Wheel and a Metal Centre
  6. +
  7. 160mm Swivel Castors with a Black Rubber Wheel and a Metal Centre
  8. +
  9. M10 x 40 Bolt and M10 Nyloc Nut 16 Pack
  • This item: TLCH Cast Iron Truck Lock £97.28
  • TLCH Cast Iron Truck Lock £97.28
Total price: £0.00

Description

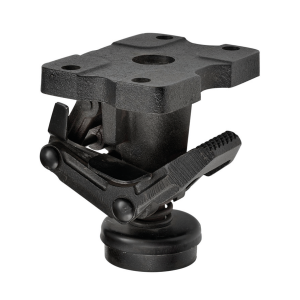

This Cast Iron Truck Lock enables you to retrofit a brake to any mobile trolley or equipment. It is the heaviest and most robust in the range of truck locks. Designed to be fitted to the underside of the equipment, it is essential that the TLCH should be mounted with the top face exactly 200mm above the ground to ensure correct operation and performance. The foot operated lever engages the anti slip rubber pad to the floor. Retracted height is 164mm and operating height is 208mm. Team up with any 160mm diameter castor to ensure the operating height clears the wheels from the ground. You can either choose to fit 2 or 4 truck locks to your mobile equipment depending upon your application. If choosing 2 then fit at each end. If choosing 4 attach near to each corner castor, allowing enough space to prevent fouling and enable operator access.

Technical Details
More Information
Castors Accessories Product Type Castors Accessories
152 Plate Length (mm) 152
114 Plate Width (mm) 114
127 Plate Hole Centres Length (mm) 127
63.5 Plate Hole Centres Width (mm) 63.5
12 Plate Hole Diameter 12
