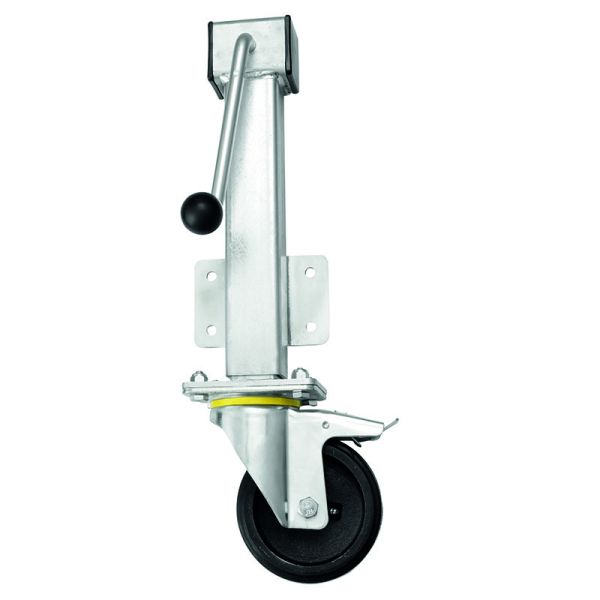

JA 200mm Heavy Duty Jacking Castor with Brake Rubber Wheel 450kg Load

SKU
RH8-200-HRT/SWB
This heavy duty jacking castor with a brake and a 200mm heavy duty rubber wheel can lift loads an additional 200mm in vertical height. These ingenious jacking castors have a side mounted plate for attachment and a crank handle... Read More
In stock
£289.78 £241.48
  • Price
  • 1 + £289.78 £241.48
  • 7 + £279.13 £232.61
£289.78 £241.48
Qty
Trade Or Bulk Enquiry
CAD Request
CAD Request

To receive a CAD drawing of this product please enter your details below:

Related Categories

Frequently bought together

  1. JA 200mm Heavy Duty Jacking Castor with Brake Rubber Wheel 450kg Load
  2. +
  3. M10 x 40 Bolt and M10 Nyloc Nut 16 Pack
  • This item: JA 200mm Heavy Duty Jacking Castor with Brake Rubber Wheel 450kg Load £289.78
  • M10 x 40 Bolt and M10 Nyloc Nut 16 Pack £6.84
Total price: £0.00
Alternative Products
Description
This heavy duty jacking castor with a brake and a 200mm heavy duty rubber wheel can lift loads an additional 200mm in vertical height. These ingenious jacking castors have a side mounted plate for attachment and a crank handle for ease of lifting movement. The foot operated brake will brake the castor swivel head and wheel.
Technical Details
More Information
Jacking Castors Castor Type Jacking Castors
Ball Journal Bearing Type Ball Journal
450 Load Capacity 450
Jacking Castors Product Type Jacking Castors
RH8-200-HRT-SWB-compressed.pdf Technical PDF RH8-200-HRT-SWB-compressed.pdf
50 Tread Width (mm) 50
10 Bolt Hole Size 10
900 Max Load Capacity for 2 Jacking Castors 900
311 Total Height to Plate Lower Bolt Hole 311
339 Jacking Unit Height From Plate Lower Bolt Hole 339
850 Jacking Unit Extension Height Max 200m 850
150 Plate Length (mm) 150
100 Plate Width (mm) 100
110 Plate Hole Centres Length (mm) 110
60 Plate Hole Centres Width (mm) 60
11 Plate Hole Diameter 11
Handle Operating Method Handle
154 Swivel Radius 154
650 Total Castor Height 650
Black Wheel Colour Black
Rubber Wheel Material Rubber
Cast Iron Wheel Centre Cast Iron
200 Wheel Diameter (mm) 200
