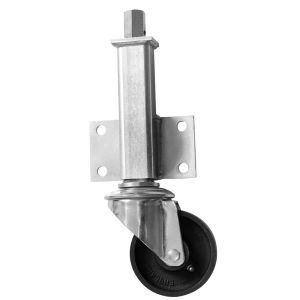

JA 160mm Medium Duty Jacking Castor with Cast Iron Wheel 200kg Load

SKU
JA4-160-CIB
This medium duty jacking castor with a 160mm cast iron wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and machinery that... Read More
In stock
£176.86 £147.38
  • Price
  • 1 + £176.86 £147.38
  • 7 + £161.92 £134.93
  • 12 + £151.28 £126.07
£176.86 £147.38
Qty
Trade Or Bulk Enquiry
CAD Request
CAD Request

To receive a CAD drawing of this product please enter your details below:

Frequently bought together

  1. JA 160mm Medium Duty Jacking Castor with Cast Iron Wheel 200kg Load
    2. +
  2. JA 160mm Medium Duty Jacking Castor with Cast Iron Wheel 200kg Load
    3. +
  3. JA 160mm Medium Duty Jacking Castor with Cast Iron Wheel 200kg Load
    4. +
  4. JA 160mm Medium Duty Jacking Castor with Cast Iron Wheel 200kg Load
  5. +
  6. M10 x 40 Bolt and M10 Nyloc Nut 16 Pack
  • This item: JA 160mm Medium Duty Jacking Castor with Cast Iron Wheel 200kg Load £176.86
  • JA 160mm Medium Duty Jacking Castor with Cast Iron Wheel 200kg Load £176.86
  • JA 160mm Medium Duty Jacking Castor with Cast Iron Wheel 200kg Load £176.86
  • JA 160mm Medium Duty Jacking Castor with Cast Iron Wheel 200kg Load £176.86
  • M10 x 40 Bolt and M10 Nyloc Nut 16 Pack £6.84
Total price: £0.00
Alternative Products
Description
This medium duty jacking castor with a 160mm cast iron wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and machinery that require vertical movement as well as horizontal. The jacking operation is achieved by a hexagonal spanner at the top of the jacking unit.
Technical Details
More Information
Jacking Castors Castor Type Jacking Castors
Roller Bearing Type Roller
200 Load Capacity 200
Jacking Castors Product Type Jacking Castors
45 Tread Width (mm) 45
10 Bolt Hole Size 10
400 Max Load Capacity for 2 Jacking Castors 400
208 Total Height to Plate Lower Bolt Hole 208
187 Jacking Unit Height From Plate Lower Bolt Hole 187
471 Jacking Unit Height When Extended (76mm) 471
130 Plate Length (mm) 130
75 Plate Width (mm) 75
102 Plate Hole Centres Length (mm) 102
51 Plate Hole Centres Width (mm) 51
11 Plate Hole Diameter 11
24mm Spanner Operating Method 24mm Spanner
120 Swivel Radius 120
395 Total Castor Height 395
Cast Iron Wheel Material Cast Iron
Cast Iron Wheel Centre Cast Iron
160 Wheel Diameter (mm) 160
