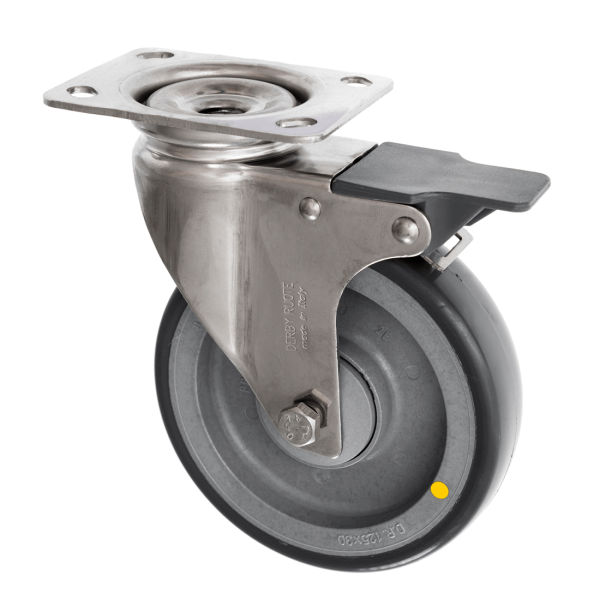

125mm Swivel Stainless Steel Braked Castor Antistatic Rubber Wheel
SKU
SSL-125-ASR/SWB
This stainless-steel swivel castor with integrated brake is engineered for smooth, electrostatic-safe... Read Full Description
In stock
£38.81
£32.34
- Price
- 1 + £38.81 £32.34
CAD Request
Frequently bought together
Alternative Products
Description
This stainless-steel swivel castor with integrated brake is engineered for smooth, electrostatic-safe rolling, controlled stopping, and corrosion resistance in light-to-medium duty applications. Fitted with a 125 mm electrically conductive rubber wheel, it provides static discharge safety while delivering quiet, cushioned movement — ideal for electronics assembly, laboratories, clean-rooms, medical facilities and commercial environments where ESD control and reliable braking are essential.
With a 100 kg load capacity and roller bearing, this castor offers efficient, low-friction rotation and dependable swivel performance under load. The A85 tread hardness ensures a secure grip and lasting wear resistance, while the 30 mm tread width and 162 mm total height support stable, consistent movement.
Constructed with a stainless-steel housing and top plate, this castor also provides strong corrosion resistance, making it suitable for hygienic, wash-down or damp environments where durability and static safety are critical.
Key Features
-
Electrically conductive rubber wheel — ESD safe for static-sensitive environments
-
Integrated brake — secure stopping and positional stability
-
Stainless-steel housing — corrosion-resistant, ideal for hygienic or wash-down conditions
-
100 kg load capacity — strong performance for light-to-medium duty equipment
-
Roller bearing — smooth, low-friction rotation
-
A85 tread hardness — firm grip with resilient rolling performance
-
30 mm tread width — stable rolling footprint and improved load distribution
-
–20 °C to +60 °C operating range — versatile for most indoor environments
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 100 kg
-
Max Load on 4 Castors: 300 kg
-
Wheel Diameter: 125 mm
-
Tread Width: 30 mm
-
Wheel Material: Electrically Conductive Rubber
-
Wheel Colour: Grey
-
Tread Hardness: A85
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 162 mm
-
Swivel Radius: 106 mm
-
Plate Length: 90 mm
-
Plate Width: 70 mm
-
Hole Centres (Length): 70 mm
-
Hole Centres (Width): 50 mm
-
Hole Diameter: 8 mm
-
Manufacturer Part Number: FSX7 HPC 125/30 P1 BP
-
Technical File: SSL-125-ASR-SWB.pdf
Applications
Ideal for use in:
-
Electronics assembly and ESD-protected workstations
-
Medical, laboratory and clean-room environments
-
Commercial equipment and service carts in static-sensitive settings
-
Retail, industrial and production areas requiring floor protection and static safety
-
Hygienic or wash-down environments demanding corrosion-resistant castors with braking control
Why Choose Ross Handling
Ross Handling supplies high-quality stainless-steel castors engineered for smooth mobility, electrostatic safety and long-term durability. This 125 mm swivel braked castor with an antistatic rubber wheel offers ESD-safe performance, secure braking, quiet rolling, and corrosion-resistant construction, making it a dependable choice for static-critical, hygienic and indoor applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
100 |
|
|
FSX7 HPC 125/30 P1 BP |
|
|
SSL-125-ASR-SWB.pdf |
|
|
30 |
|
|
-20 min to + 60 max |
|
|
A85 |
|
|
300 |
|
|
90 |
|
|
70 |
|
|
70 |
|
|
50 |
|
|
8 |
|
|
106 |
|
|
162 |
|
|
Grey |
|
|
125 |
|
|
Electrically Conductive Rubber |
