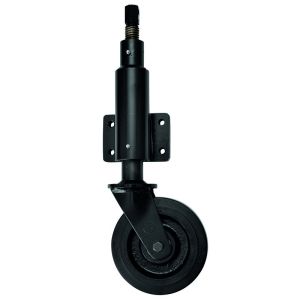

200mm Extra Heavy Duty Jacking Castor with Rubber Wheel and 76mm Lift

SKU
JA8-200-RTB
This Extra Heavy Duty Jacking Castor with a 200mm heavy duty rubber wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and... Read More
Out of stock
£388.91 £324.09
  • Price
  • 1 + £388.91 £324.09
CAD Request

To receive a CAD drawing of this product please enter your details below:

Frequently bought together

  1. 200mm Extra Heavy Duty Jacking Castor with Rubber Wheel and 76mm Lift
  2. +
  3. M12 x 40 Threaded Bolts and Nyloc Nuts - 4 Pack
  • This item: 200mm Extra Heavy Duty Jacking Castor with Rubber Wheel and 76mm Lift £388.91 Out of stock
  • M12 x 40 Threaded Bolts and Nyloc Nuts - 4 Pack £3.25
Total price: £0.00
Alternative Products
Description
This Extra Heavy Duty Jacking Castor with a 200mm heavy duty rubber wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and machinery that require vertical movement as well as horizontal. The jacking operation is achieved by a hexagonal spanner at the top of the jacking unit. JA8RTB
Technical Details
More Information
Jacking Castors Castor Type Jacking Castors
Ball Journal Bearing Type Ball Journal
600 Load Capacity 600
Jacking Castors Product Type Jacking Castors
60 Tread Width (mm) 60
12 Bolt Hole Size 12
600 Max Load Capacity for 2 Jacking Castors 600
265 Total Height to Plate Lower Bolt Hole 265
240 Jacking Unit Height From Plate Lower Bolt Hole 240
620 Jacking Unit Height When Extended (76mm) 620
152 Plate Length (mm) 152
106 Plate Width (mm) 106
114 Plate Hole Centres Length (mm) 114
64 Plate Hole Centres Width (mm) 64
13 Plate Hole Diameter 13
Spanner Operating Method Spanner
165 Swivel Radius 165
226.5+ 76 Total Castor Height 226.5+ 76
Black Wheel Colour Black
Rubber Wheel Material Rubber
Cast Iron Wheel Centre Cast Iron
200 Wheel Diameter (mm) 200
