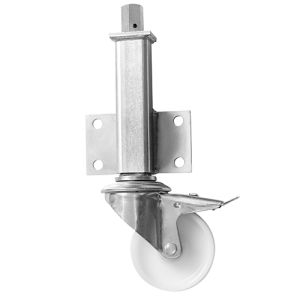

JA 160mm Medium Duty Jacking Castor White Nylon Wheel 200kg Load

SKU
JA4-160-NYB
This medium duty jacking castor with a 160mm nylon wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and machinery that require... Read More
In stock
£159.80 £133.17
  • Price
  • 1 + £159.80 £133.17
  • 7 + £144.89 £120.74
  • 12 + £134.23 £111.86
£159.80 £133.17
Qty
Trade Or Bulk Enquiry
CAD Request
CAD Request
Click to Download 3D image

To receive a CAD drawing of this product please enter your details below:

Frequently bought together

  1. JA 160mm Medium Duty Jacking Castor White Nylon Wheel 200kg Load
    2. +
  2. JA 160mm Medium Duty Jacking Castor White Nylon Wheel 200kg Load
  3. +
  4. JA 160mm Medium Duty Jacking Castor with Brake Nylon Wheel 200kg Load
  5. +
  6. JA 160mm Medium Duty Jacking Castor with Brake Nylon Wheel 200kg Load
  7. +
  8. M10 x 40 Bolt and M10 Nyloc Nut 16 Pack
  • This item: JA 160mm Medium Duty Jacking Castor White Nylon Wheel 200kg Load £159.80
  • JA 160mm Medium Duty Jacking Castor White Nylon Wheel 200kg Load £159.80
  • JA 160mm Medium Duty Jacking Castor with Brake Nylon Wheel 200kg Load £168.32
  • JA 160mm Medium Duty Jacking Castor with Brake Nylon Wheel 200kg Load £168.32
  • M10 x 40 Bolt and M10 Nyloc Nut 16 Pack £6.84
Total price: £0.00
Alternative Products
Description
This medium duty jacking castor with a 160mm nylon wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and machinery that require vertical movement as well as horizontal. The jacking operation is achieved by a hexagonal spanner at the top of the jacking unit.
Technical Details
More Information
Jacking Castors Castor Type Jacking Castors
Roller Bearing Type Roller
200 Load Capacity 200
Jacking Castors Product Type Jacking Castors
JA4-160-NYB-compressed.pdf Technical PDF JA4-160-NYB-compressed.pdf
40 Tread Width (mm) 40
10 Bolt Hole Size 10
400 Max Load Capacity for 2 Jacking Castors 400
218 Total Height to Plate Lower Bolt Hole 218
187 Jacking Unit Height From Plate Lower Bolt Hole 187
481 Jacking Unit Height When Extended (76mm) 481
130 Plate Length (mm) 130
75 Plate Width (mm) 75
102 Plate Hole Centres Length (mm) 102
51 Plate Hole Centres Width (mm) 51
11 Plate Hole Diameter 11
24mm Spanner Operating Method 24mm Spanner
40 Swivel Radius 40
405 Total Castor Height 405
White Wheel Colour White
Nylon Wheel Material Nylon
White Polyamide Wheel Centre White Polyamide
160 Wheel Diameter (mm) 160
