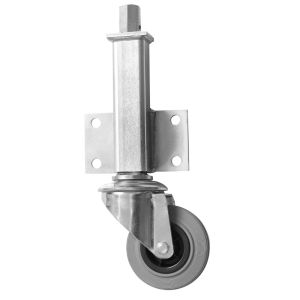

JA 125mm Medium Duty Jacking Castor Rubber Wheel 100kg Load

SKU
JA4-125-GVR
This medium duty jacking castor with a 125mm rubber wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and machinery that require... Read More
In stock
£151.28 £126.07
  • Price
  • 1 + £151.28 £126.07
£151.28 £126.07
Qty
Trade Or Bulk Enquiry
CAD Request
CAD Request

To receive a CAD drawing of this product please enter your details below:


Frequently bought together

  1. JA 125mm Medium Duty Jacking Castor Rubber Wheel 100kg Load
  2. +
  3. JA 125mm Medium Duty Jacking Castor Rubber Wheel 100kg Load
  4. +
  5. 125mm Braked Jacking Castor with Rubber Wheel and 76mm Lift
  6. +
  7. 125mm Braked Jacking Castor with Rubber Wheel and 76mm Lift
  8. +
  9. M10 x 40 Bolt and M10 Nyloc Nut 16 Pack
  • This item: JA 125mm Medium Duty Jacking Castor Rubber Wheel 100kg Load £151.28
  • JA 125mm Medium Duty Jacking Castor Rubber Wheel 100kg Load £151.28
Total price: £0.00

Description
This medium duty jacking castor with a 125mm rubber wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and machinery that require vertical movement as well as horizontal. The jacking operation is achieved by a hexagonal spanner at the top of the jacking unit.
Technical Details
More Information
Jacking Castors Castor Type Jacking Castors
Roller Bearing Type Roller
100 Load Capacity 100
Jacking Castors Product Type Jacking Castors
JA4-125-GVR-compressed.pdf Technical PDF JA4-125-GVR-compressed.pdf
23 Tread Width (mm) 23
10 Bolt Hole Size 10
200 Max Load Capacity for 2 Jacking Castors 200
178 Total Height to Plate Lower Bolt Hole 178
187 Jacking Unit Height From Plate Lower Bolt Hole 187
441 Jacking Unit Height When Extended (76mm) 441
130 Plate Length (mm) 130
75 Plate Width (mm) 75
102 Plate Hole Centres Length (mm) 102
51 Plate Hole Centres Width (mm) 51
11 Plate Hole Diameter 11
24mm Spanner Operating Method 24mm Spanner
98 Swivel Radius 98
365 Total Castor Height 365
Grey Wheel Colour Grey
Rubber Wheel Material Rubber
Black Polypropylene Wheel Centre Black Polypropylene
125 Wheel Diameter (mm) 125
