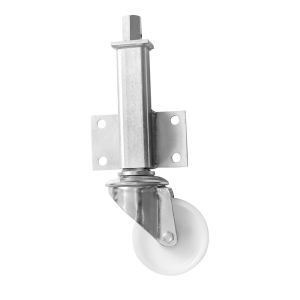

JA 100mm Medium Duty Jacking Castor White Nylon Wheel 150kg Load

SKU
JA4-100-NYB
This medium duty jacking castor with a 100mm nylon wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and machinery that require... Read More
In stock
£115.68 £96.40
  • Price
  • 1 + £115.68 £96.40
  • 7 + £108.25 £90.21
  • 12 + £105.46 £87.88
£115.68 £96.40
Qty
Trade Or Bulk Enquiry
CAD Request
CAD Request
Click to Download 3D image

To receive a CAD drawing of this product please enter your details below:

Frequently bought together

  1. JA 100mm Medium Duty Jacking Castor White Nylon Wheel 150kg Load
    2. +
  2. JA 100mm Medium Duty Jacking Castor White Nylon Wheel 150kg Load
  3. +

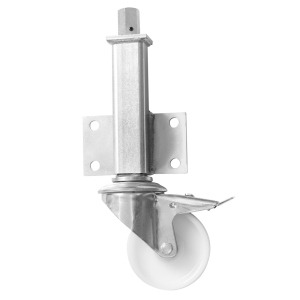

  4. JA 100mm Medium Duty Jacking Castor with Brake Nylon Wheel 150kg Load
  5. +
  6. JA 100mm Medium Duty Jacking Castor with Brake Nylon Wheel 150kg Load
  7. +
  8. M10 x 40 Bolt and M10 Nyloc Nut 16 Pack
  • This item: JA 100mm Medium Duty Jacking Castor White Nylon Wheel 150kg Load £115.68
  • JA 100mm Medium Duty Jacking Castor White Nylon Wheel 150kg Load £115.68
  • JA 100mm Medium Duty Jacking Castor with Brake Nylon Wheel 150kg Load £155.51
  • JA 100mm Medium Duty Jacking Castor with Brake Nylon Wheel 150kg Load £155.51
  • M10 x 40 Bolt and M10 Nyloc Nut 16 Pack £6.84
Total price: £0.00
Alternative Products
Description
This medium duty jacking castor with a 100mm nylon wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and machinery that require vertical movement as well as horizontal. The jacking operation is achieved by a hexagonal spanner at the top of the jacking unit.
Technical Details
More Information
Jacking Castors Castor Type Jacking Castors
Roller Bearing Type Roller
150 Load Capacity 150
Jacking Castors Product Type Jacking Castors
JA4-100-NYB-compressed.pdf Technical PDF JA4-100-NYB-compressed.pdf
36 Tread Width (mm) 36
10 Bolt Hole Size 10
300 Max Load Capacity for 2 Jacking Castors 300
151 Total Height to Plate Lower Bolt Hole 151
187 Jacking Unit Height From Plate Lower Bolt Hole 187
414 Jacking Unit Height When Extended (76mm) 414
130 Plate Length (mm) 130
75 Plate Width (mm) 75
102 Plate Hole Centres Length (mm) 102
51 Plate Hole Centres Width (mm) 51
11 Plate Hole Diameter 11
24mm Spanner Operating Method 24mm Spanner
178 Swivel Radius 178
338 Total Castor Height 338
White Wheel Colour White
Nylon Wheel Material Nylon
White Polyamide Wheel Centre White Polyamide
100 Wheel Diameter (mm) 100
