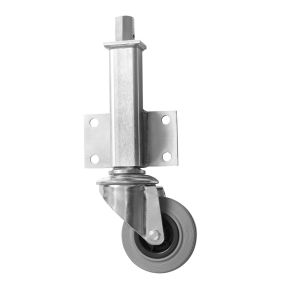

JA 100mm Medium Duty Jacking Castor with Brake Rubber Wheel 80kg Load

SKU
JA4-100-GVR/SWB
This medium duty jacking castor with a brake and a 100mm rubber wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and machinery... Read More
In stock
£157.66 £131.38
  • Price
  • 1 + £157.66 £131.38
  • 7 + £142.76 £118.97
  • 12 + £129.96 £108.30
£157.66 £131.38
Qty
Trade Or Bulk Enquiry
CAD Request
CAD Request
Click to Download 3D image

To receive a CAD drawing of this product please enter your details below:

Frequently bought together

  1. Medium Duty Jacking Castor with Brake Rubber Wheel
    2. +
  2. Medium Duty Jacking Castor with Brake Rubber Wheel
  3. +
  4. JA 100mm Medium Duty Jacking Castor Rubber Wheel 80kg Load
  5. +
  6. JA 100mm Medium Duty Jacking Castor Rubber Wheel 80kg Load
  7. +
  8. M10 x 40 Bolt and M10 Nyloc Nut 16 Pack
  • This item: JA 100mm Medium Duty Jacking Castor with Brake Rubber Wheel 80kg Load £157.66
  • JA 100mm Medium Duty Jacking Castor with Brake Rubber Wheel 80kg Load £157.66
  • JA 100mm Medium Duty Jacking Castor Rubber Wheel 80kg Load £149.18
  • JA 100mm Medium Duty Jacking Castor Rubber Wheel 80kg Load £149.18
  • M10 x 40 Bolt and M10 Nyloc Nut 16 Pack £6.84
Total price: £0.00
Alternative Products
Description
This medium duty jacking castor with a brake and a 100mm rubber wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and machinery that require vertical movement as well as horizontal. The jacking operation is achieved by a hexagonal spanner at the top of the jacking unit. The foot operated brake will brake the castor swivel head and wheel.
Technical Details
More Information
Jacking Castors Castor Type Jacking Castors
Roller Bearing Type Roller
80 Load Capacity 80
Jacking Castors Product Type Jacking Castors
23 Tread Width (mm) 23
10 Bolt Hole Size 10
160 Max Load Capacity for 2 Jacking Castors 160
151 Total Height to Plate Lower Bolt Hole 151
187 Jacking Unit Height From Plate Lower Bolt Hole 187
414 Jacking Unit Height When Extended (76mm) 414
130 Plate Length (mm) 130
75 Plate Width (mm) 75
102 Plate Hole Centres Length (mm) 102
51 Plate Hole Centres Width (mm) 51
11 Plate Hole Diameter 11
24mm Spanner Operating Method 24mm Spanner
131 Swivel Radius 131
338 Total Castor Height 338
Grey Wheel Colour Grey
Rubber Wheel Material Rubber
Black Polypropylene Wheel Centre Black Polypropylene
100 Wheel Diameter (mm) 100
