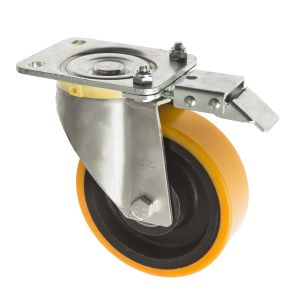

Heavy Duty Castors Directional Lock - 160mm Polyurethane Castor Wheel

SKU
160-5000-SUB/D

Directional Lock added to our 160mm polyurethane castors. Directional lock is a way of making a swivel castor into a fixed castor temporarily - by locking the swivel head but not the wheel which means castor moves in one... Read More

In stock
£86.93 £72.44
  • Price
  • 1 + £86.93 £72.44
£86.93 £72.44
Qty
  • Discount Bulk Enquiry
CAD Request
Click to Download 3D image

To receive a CAD drawing of this product please enter your details below:

Related Categories

Frequently bought together

  1. Heavy Duty Castors Directional Lock - 160mm Polyurethane Castor Wheel
    2. +
  2. Heavy Duty Castors Directional Lock - 160mm Polyurethane Castor Wheel
  3. +
  4. 160mm Heavy Duty Castors Polyurethane Wheel 700kg
  5. +
  6. 160mm Heavy Duty Castors Polyurethane Wheel 700kg
  7. +
  8. M10 x 40 Bolt and M10 Nyloc Nut 16 Pack
  • This item: Heavy Duty Castors Directional Lock - 160mm Polyurethane Castor Wheel £86.93
  • Heavy Duty Castors Directional Lock - 160mm Polyurethane Castor Wheel £86.93
  • 160mm Heavy Duty Castors Polyurethane Wheel 700kg £76.92
  • 160mm Heavy Duty Castors Polyurethane Wheel 700kg £76.92
  • M10 x 40 Bolt and M10 Nyloc Nut 16 Pack £6.84
Total price: £0.00
Alternative Products
Description

Directional Lock added to our 160mm polyurethane castors. Directional lock is a way of making a swivel castor into a fixed castor temporarily - by locking the swivel head but not the wheel which means castor moves in one direction. Directional lock castors are great for cornering or pivoting. Can be added to just one trolley wheel - usually front left of the trolley if left cornering or front right if right cornering

Technical Details
More Information
Ball Journal Bearing Type Ball Journal
700 Load Capacity 700
Top Plate Castors Product Type Top Plate Castors
160-5000-SUB-D.pdf Technical PDF 160-5000-SUB-D.pdf
50 Tread Width (mm) 50
-40 min to +60 max Temperature Range -40 min to +60 max
92 shore A Hardness of Tread 92 shore A
2100 Max Load Capacity of 4 Castors 2100
140 Plate Length (mm) 140
110 Plate Width (mm) 110
105 Plate Hole Centres Length (mm) 105
80/75 Plate Hole Centres Width (mm) 80/75
10 Plate Hole Diameter 10
150 Swivel Radius 150
200 Total Castor Height 200
Yellow Wheel Colour Yellow
Polyurethane Wheel Material Polyurethane
Cast Iron Wheel Centre Cast Iron
160 Wheel Diameter (mm) 160
