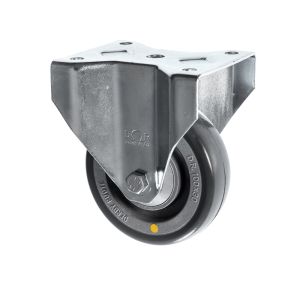

Electro Conductive Fixed Castors 160mm Polyurethane Wheel

SKU
160-3368-HPP
This Anti Static Fixed Castor with electro conductive 160mm diameter polyurethane wheels is ideal for spark free environments such as clean rooms, laboratories and areas with highly sensitive equipment. This fixed castor can... Read More
In stock
£50.03 £41.69
  • Price
  • 1 + £50.03 £41.69
  • 20 + £47.88 £39.90
  • 50 + £45.68 £38.07
  • 100 + £43.52 £36.27
£50.03 £41.69
Qty
Trade Or Bulk Enquiry
CAD Request
CAD Request

To receive a CAD drawing of this product please enter your details below:


Frequently bought together

  1. Electro Conductive Fixed Castors 160mm Polyurethane Wheel
  2. +
  3. Electro Conductive Fixed Castors 160mm Polyurethane Wheel
  4. +

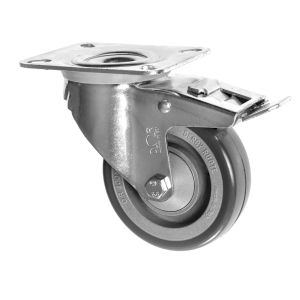

  5. Electro Conductive Castors 160mm Polyurethane Wheel and Brake
  6. +
  7. Electro Conductive Castors 160mm Polyurethane Wheel and Brake
  8. +
  9. M10 x 40 Bolt and M10 Nyloc Nut 16 Pack
  • This item: Electro Conductive Fixed Castors 160mm Polyurethane Wheel £50.03
  • Electro Conductive Fixed Castors 160mm Polyurethane Wheel £50.03
Total price: £0.00

Description
This Anti Static Fixed Castor with electro conductive 160mm diameter polyurethane wheels is ideal for spark free environments such as clean rooms, laboratories and areas with highly sensitive equipment. This fixed castor can carry up to 350kg each castor so is suitable in heavy duty environments aswell. The electro conductive wheels oppose the flow of electric current improving the resistivity, which is ideal in preventing the build up of charge in sensitive environments. With high spec ball journal bearings these electro conductive casters and wheels make moving sensitive equipment an easy solution .
Technical Details
More Information
Ball Journal Bearing Type Ball Journal
350 Load Capacity 350
TSZ7 HPP 160/40 P3 FA 7012 Manufacturer Part No. TSZ7 HPP 160/40 P3 FA 7012
Top Plate Castors Product Type Top Plate Castors
160-3368-HPP.pdf Technical PDF 160-3368-HPP.pdf
40 Tread Width (mm) 40
-40 min to +80 max Temperature Range -40 min to +80 max
95 shore A Hardness of Tread 95 shore A
1050 Max Load Capacity of 4 Castors 1050
140 Plate Length (mm) 140
110 Plate Width (mm) 110
105 Plate Hole Centres Length (mm) 105
80/75 Plate Hole Centres Width (mm) 80/75
10 Plate Hole Diameter 10
200 Total Castor Height 200
Grey Wheel Colour Grey
Electro Conductive Polyurethane Wheel Material Electro Conductive Polyurethane
Polyamide Wheel Centre Polyamide
160 Wheel Diameter (mm) 160
