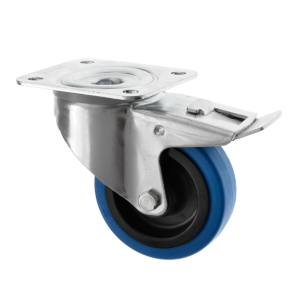

200mm Blue Elastic Rubber Castors with Brake 400kg

SKU
200-3360-RNB/SWB

These 200mm braked castors are made of a zinc plated housing which ensures the castors are robust enough and suitable for a variety of environments. The swiveling castor, with the non marking 8" blue rubber wheel and a brake... Read More

In stock
£38.53 £32.11
  • Price
  • 1 + £38.53 £32.11
£38.53 £32.11
Qty
  • Discount Bulk Enquiry
CAD Request

To receive a CAD drawing of this product please enter your details below:

Related Categories

Frequently bought together

  1. 200mm Blue Elastic Rubber Castors with Brake 400kg
    2. +
  2. 200mm Blue Elastic Rubber Castors with Brake 400kg
  3. +

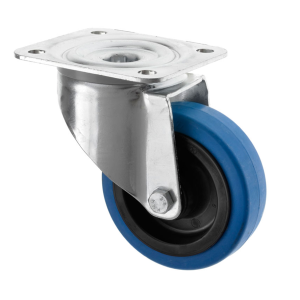

  4. 200mm Industrial Castors with Blue Rubber Wheel
  5. +
  6. 200mm Industrial Castors with Blue Rubber Wheel
  7. +
  8. M10 x 40 Bolt and M10 Nyloc Nut 16 Pack
  • This item: 200mm Blue Elastic Rubber Castors with Brake 400kg £38.53
  • 200mm Blue Elastic Rubber Castors with Brake 400kg £38.53
  • 200mm Industrial Castors with Blue Rubber Wheel £34.50
  • 200mm Industrial Castors with Blue Rubber Wheel £34.50
  • M10 x 40 Bolt and M10 Nyloc Nut 16 Pack £6.84
Total price: £0.00
Alternative Products
Description

These 200mm braked castors are made of a zinc plated housing which ensures the castors are robust enough and suitable for a variety of environments. The swiveling castor, with the non marking 8" blue rubber wheel and a brake is suitable for trolleys, equipment and general purposes. The non marking blue rubber caster wheel with roller bearings means these castors are quiet to move, will not mark the floor and will carry significant loads of up to 400kgs each. The foot operated wheel brake simultaneously brakes both the swivel castor head and the wheel.

Technical Details
More Information
Top Plate Castors Castor Type Top Plate Castors
Ball Journal Bearing Type Ball Journal
Blue Colour Blue
400 Load Capacity 400
TSZ7 NER 200/45 P3 BP 5017 Manufacturer Part No. TSZ7 NER 200/45 P3 BP 5017
Top Plate Castors Product Type Top Plate Castors
200-3360-RNB-SWB_1.pdf Technical PDF 200-3360-RNB-SWB_1.pdf
40 Tread Width (mm) 40
-20 min to +80 max Temperature Range -20 min to +80 max
A70 Hardness of Tread A70
1200 Max Load Capacity of 4 Castors 1200
137 Plate Length (mm) 137
105 Plate Width (mm) 105
105 Plate Hole Centres Length (mm) 105
80/75 Plate Hole Centres Width (mm) 80/75
10 Plate Hole Diameter 10
167 Swivel Radius 167
240 Total Castor Height 240
Blue Wheel Colour Blue
Rubber Wheel Material Rubber
Black Polypropylene Wheel Centre Black Polypropylene
200 Wheel Diameter (mm) 200
