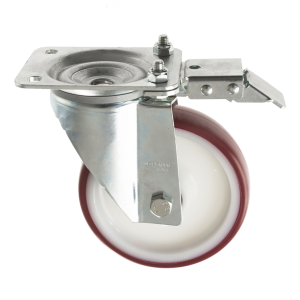

200mm Red Polyurethane Castor Wheel with Directional Lock

SKU
200-3360-PNB/D
Directional lock added to our 200mm polyurethane wheel. Directional lock is a way of making a swivel castor into a fixed castor temporarily - by locking the swivel head but not the wheel which means castor moves in one direction.... Read More
In stock
£59.29 £49.41
  • Price
  • 1 + £59.29 £49.41
£59.29 £49.41
Qty
  • Discount Bulk Enquiry
CAD Request

To receive a CAD drawing of this product please enter your details below:

Related Categories

Frequently bought together

  1. 200mm Directional Lock Polyurethane Castor Red Wheel
    2. +
  2. 200mm Directional Lock Polyurethane Castor Red Wheel
  3. +
  4. Swivel Castor Red Polyurethane Wheel
  5. +
  6. Swivel Castor Red Polyurethane Wheel
  7. +
  8. M10 x 40 Bolt and M10 Nyloc Nut 16 Pack
  • This item: 200mm Red Polyurethane Castor Wheel with Directional Lock £59.29
  • 200mm Red Polyurethane Castor Wheel with Directional Lock £59.29
  • 200mm Swivel Castor Red Polyurethane Wheel £34.52
  • 200mm Swivel Castor Red Polyurethane Wheel £34.52
  • M10 x 40 Bolt and M10 Nyloc Nut 16 Pack £6.84
Total price: £0.00
Alternative Products
Description
Directional lock added to our 200mm polyurethane wheel. Directional lock is a way of making a swivel castor into a fixed castor temporarily - by locking the swivel head but not the wheel which means castor moves in one direction. Directional lock castors are great for cornering or pivoting. Can be added to just one trolley wheel - usually front left of the trolley if left cornering or front right if right cornering
Technical Details
More Information
Roller Bearing Type Roller
400 Load Capacity 400
Top Plate Castors Product Type Top Plate Castors
200-3360-PNB-D.pdf Technical PDF 200-3360-PNB-D.pdf
50 Tread Width (mm) 50
-40 min to +80 max Temperature Range -40 min to +80 max
D60 Hardness of Tread D60
1200 Max Load Capacity of 4 Castors 1200
137 Plate Length (mm) 137
105 Plate Width (mm) 105
105 Plate Hole Centres Length (mm) 105
80/75 Plate Hole Centres Width (mm) 80/75
10 Plate Hole Diameter 10
155 Swivel Radius 155
240 Total Castor Height 240
Maroon Wheel Colour Maroon
Polyurethane Wheel Material Polyurethane
White Polyamide Wheel Centre White Polyamide
200 Wheel Diameter (mm) 200
