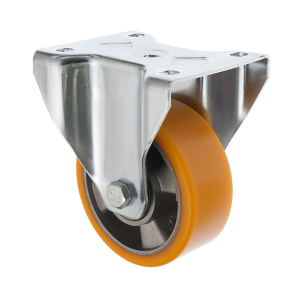

125mm Heavy Duty Fixed Castors Polyurethane Wheel 500kg

SKU
125-5050-PAL

These 125mm extra heavy duty fixed castors, overall height 164mm, load capacity 500kgs each, 4 X M10 Bolt fixing plate. Heavy duty fixed castors are made of a heavy duty pressed steel zinc plated, housing a polyurethane wheel... Read More

In stock
£39.95 £33.29
£39.95 £33.29
Qty
Trade Or Bulk Enquiry
CAD Request
CAD Request
Click to Download 3D image

To receive a CAD drawing of this product please enter your details below:

Frequently bought together

  1. 125mm Heavy Duty Fixed Castors Polyurethane Wheel 500kg
    2. +
  2. 125mm Heavy Duty Fixed Castors Polyurethane Wheel 500kg
  3. +
  4. 125mm Heavy Duty Castors with Brake Polyurethane Wheel
  5. +
  6. 125mm Heavy Duty Castors with Brake Polyurethane Wheel
  7. +
  8. M10 x 40 Bolt and M10 Nyloc Nut 16 Pack
  • This item: 125mm Heavy Duty Fixed Castors Polyurethane Wheel 500kg £39.95
  • 125mm Heavy Duty Fixed Castors Polyurethane Wheel 500kg £39.95
  • 125mm Heavy Duty Castors with Brake Polyurethane Wheel £60.23
  • 125mm Heavy Duty Castors with Brake Polyurethane Wheel £60.23
  • M10 x 40 Bolt and M10 Nyloc Nut 16 Pack £6.84
Total price: £0.00
Alternative Products
Description

These 125mm extra heavy duty fixed castors, overall height 164mm, load capacity 500kgs each, 4 X M10 Bolt fixing plate. Heavy duty fixed castors are made of a heavy duty pressed steel zinc plated, housing a polyurethane wheel mounted on an aluminium centre. This fixed castor wheel runs on ball journal bearings, making the heavier loads easier to move. These castors are suitable for a range of heavy duty applications. Combine 4 castors to take 1.5tonne castors load capacity. Electro conductive version available, please contact the sales team.

Technical Details
More Information
Top Plate Castors Castor Type Top Plate Castors
Ball Journal Bearing Type Ball Journal
500 Load Capacity 500
Top Plate Castors Product Type Top Plate Castors
125-5050-PAL_1.pdf Technical PDF 125-5050-PAL_1.pdf
50 Tread Width (mm) 50
-20 min to + 60 max Temperature Range -20 min to + 60 max
A92 Hardness of Tread A92
1500 Max Load Capacity of 4 Castors 1500
140 Plate Length (mm) 140
110 Plate Width (mm) 110
105 Plate Hole Centres Length (mm) 105
80/75 Plate Hole Centres Width (mm) 80/75
10 Plate Hole Diameter 10
164 Total Castor Height 164
Yellow Wheel Colour Yellow
Polyurethane Wheel Material Polyurethane
Aluminium Wheel Centre Aluminium
125 Wheel Diameter (mm) 125
