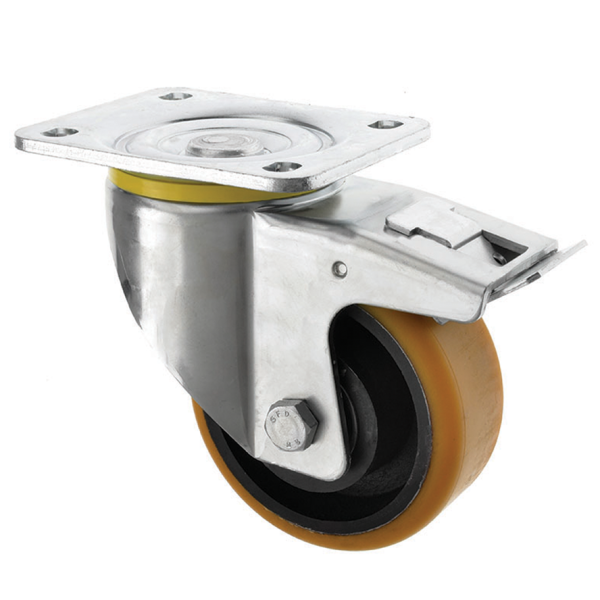

125mm Heavy Duty Braked Castors Polyurethane Wheel 550kg

SKU
125-5000-SUB/SWB

These 125mm extra heavy duty lockable castors are made of a heavy duty pressed steel zinc plated, housing a 5" ( 125mm ) polyurethane wheel mounted on a cast iron centre. These 5" heavy duty polyurethane caster wheels run on... Read More

In stock
£75.41 £62.84
  • Price
  • 1 + £75.41 £62.84
£75.41 £62.84
Qty
Trade Or Bulk Enquiry
CAD Request
CAD Request

To receive a CAD drawing of this product please enter your details below:


Frequently bought together

  1. 125mm Heavy Duty Braked Castors Polyurethane Wheel
  2. +
  3. 125mm Heavy Duty Braked Castors Polyurethane Wheel
  4. +
  5. 125mm Heavy Duty Castors Polyurethane Wheel 550kg
  6. +
  7. 125mm Heavy Duty Castors Polyurethane Wheel 550kg
  8. +
  9. M10 x 40 Bolt and M10 Nyloc Nut 16 Pack
  • This item: 125mm Heavy Duty Braked Castors Polyurethane Wheel 550kg £75.41
  • 125mm Heavy Duty Braked Castors Polyurethane Wheel 550kg £75.41
Total price: £0.00

Description

These 125mm extra heavy duty lockable castors are made of a heavy duty pressed steel zinc plated, housing a 5" ( 125mm ) polyurethane wheel mounted on a cast iron centre. These 5" heavy duty polyurethane caster wheels run on ball journal bearings, making the heavier loads easier to move. The foot operated wheel brake simultaneously brakes both the swivel castor head and the wheel. These castors are suitable for a range of heavy duty applications. Able to carry loads of 550kgs each castor, combine 4 to carry 1.5 tonnes. Overall height 164mm, 4 x M10 Bolt Fixing top plate castors for easy attachment, in stock for NEXT DAY delivery!

Technical Details
More Information
Top Plate Castors Castor Type Top Plate Castors
Ball Journal Bearing Type Ball Journal
550 Load Capacity 550
Top Plate Castors Product Type Top Plate Castors
125-5000-SUB-SWB_1.pdf Technical PDF 125-5000-SUB-SWB_1.pdf
50 Tread Width (mm) 50
-40 min to + 60 max Temperature Range -40 min to + 60 max
A92 Hardness of Tread A92
1650 Max Load Capacity of 4 Castors 1650
140 Plate Length (mm) 140
110 Plate Width (mm) 110
105 Plate Hole Centres Length (mm) 105
80/75 Plate Hole Centres Width (mm) 80/75
10 Plate Hole Diameter 10
148 Swivel Radius 148
164 Total Castor Height 164
Yellow Wheel Colour Yellow
Polyurethane Wheel Material Polyurethane
Cast Iron Wheel Centre Cast Iron
125 Wheel Diameter (mm) 125
