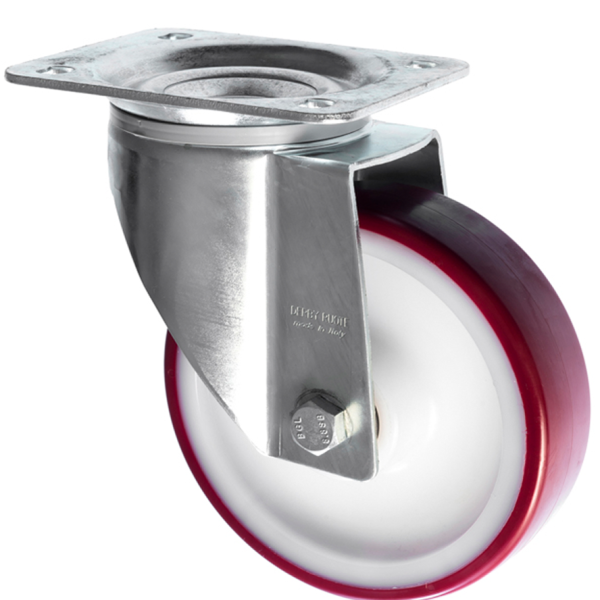

100mm Swivel Polyurethane Castor Red Wheel

SKU
100-3360-PNB
This 100mm polyurethane castors are made of a zinc plated housing which ensures the castor is robust enough and suitable for a variety of environments. The swiveling castor, with the red polyurethane wheel is strong and durable... Read More
In stock
£13.15 £10.96
  • Price
  • 1 + £13.15 £10.96
£13.15 £10.96
Qty
  • Discount Bulk Enquiry
CAD Request

To receive a CAD drawing of this product please enter your details below:

Related Categories

Frequently bought together

  1. 00mm Swivel Polyurethane Castor Red Wheel
    2. +
  2. 00mm Swivel Polyurethane Castor Red Wheel
  3. +

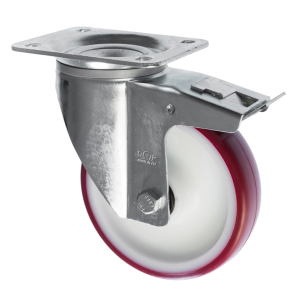

  4. 100mm Red Polyurethane Swivel Castors with Brake
  5. +
  6. 100mm Red Polyurethane Swivel Castors with Brake
  7. +
  8. M8 x 30 Bolt and M8 Nyloc Nut x 16 Pack
  • This item: 100mm Swivel Polyurethane Castor Red Wheel £13.15
  • 100mm Swivel Polyurethane Castor Red Wheel £13.15
  • 100mm Red Polyurethane Swivel Castors with Brake £16.28
  • 100mm Red Polyurethane Swivel Castors with Brake £16.28
  • M8 x 30 Bolt and M8 Nyloc Nut x 16 Pack £6.42
Total price: £0.00
Alternative Products
Description
This 100mm polyurethane castors are made of a zinc plated housing which ensures the castor is robust enough and suitable for a variety of environments. The swiveling castor, with the red polyurethane wheel is strong and durable and suitable for moving machinery and equipment. The red polyurethane tire is bonded onto the polyamide nylon center making the castor very strong and durable. 3470UAR100P62 red 787-1391
Technical Details
More Information
Top Plate Castors Castor Type Top Plate Castors
Roller Bearing Type Roller
200 Load Capacity 200
TSZ7 NPR 100/30 P2 Manufacturer Part No. TSZ7 NPR 100/30 P2
Top Plate Castors Product Type Top Plate Castors
100-3360-PNB_1.pdf Technical PDF 100-3360-PNB_1.pdf
30 Tread Width (mm) 30
-40 min to +80 max Temperature Range -40 min to +80 max
D60 Hardness of Tread D60
600 Max Load Capacity of 4 Castors 600
105 Plate Length (mm) 105
85 Plate Width (mm) 85
80/77 Plate Hole Centres Length (mm) 80/77
60 Plate Hole Centres Width (mm) 60
8 Plate Hole Diameter 8
91 Swivel Radius 91
128 Total Castor Height 128
Maroon Wheel Colour Maroon
Polyurethane Wheel Material Polyurethane
White Polyamide Wheel Centre White Polyamide
100 Wheel Diameter (mm) 100
