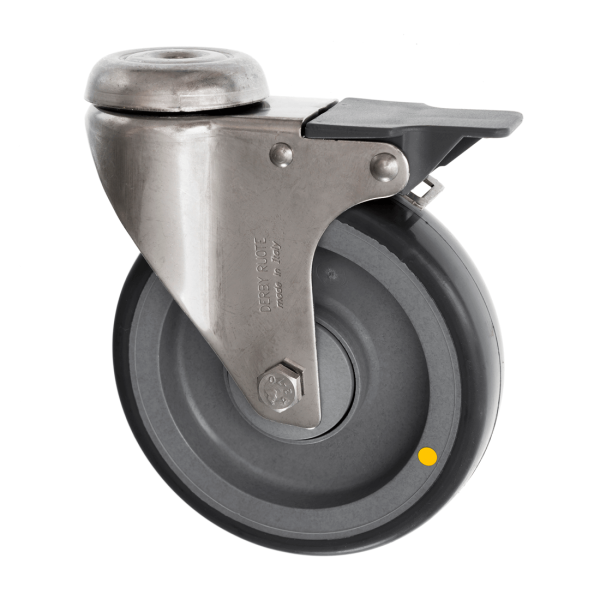

100mm Swivel Bolt Hole Stainless Steel Braked Castor Electro Conductive Rubber Wheel

SKU
SSL-100-ASR/SWB/BH12
This 100mm light duty stainless steel bolt hole swivel braked castors with electrically conductive wheels which are suitable for lightweight applications where anti static castors are required. The stainless steel braked castors... Read More
In stock
£33.42 £27.85
  • Price
  • 1 + £33.42 £27.85
  • 20 + £30.74 £25.62
  • 50 + £28.09 £23.41
  • 100 + £25.39 £21.16
£33.42 £27.85
Qty
Trade Or Bulk Enquiry
CAD Request
CAD Request

To receive a CAD drawing of this product please enter your details below:

Frequently bought together

  1. 100mm Swivel Bolt Hole Castors
    2. +
  2. 100mm Swivel Bolt Hole Castors
  3. +
  4. 100mm Swivel Bolt Hole Castor
  5. +
  6. 100mm Swivel Bolt Hole Castor
  7. +
  8. M12 x 40 Stainless Steel Bolts and Nyloc Nuts - 4 Pack
  • This item: 100mm Swivel Bolt Hole Stainless Steel Braked Castor Electro Conductive Rubber Wheel £33.42
  • 100mm Swivel Bolt Hole Stainless Steel Braked Castor Electro Conductive Rubber Wheel £33.42
  • 100mm Swivel Bolt Hole Stainless Steel Castor Electro Conductive Rubber Wheel £27.07
  • 100mm Swivel Bolt Hole Stainless Steel Castor Electro Conductive Rubber Wheel £27.07
  • M12 x 40 Stainless Steel Bolts and Nyloc Nuts - 4 Pack £6.56
Total price: £0.00
Alternative Products
Description
This 100mm light duty stainless steel bolt hole swivel braked castors with electrically conductive wheels which are suitable for lightweight applications where anti static castors are required. The stainless steel braked castors are non corrosive and resistant and the light weight electro conductive rubber wheels are anti static, light and durable. The foot operated brake simultaneously brakes both the swivel head and the wheel.
Technical Details
More Information
Bolt Hole Castors Castor Type Bolt Hole Castors
Ball Journal Bearing Type Ball Journal
80 Load Capacity 80
FSX7 HPC 100/30 F0-12 BP Manufacturer Part No. FSX7 HPC 100/30 F0-12 BP
Bolt Hole Castors Product Type Bolt Hole Castors
SSL-100-ASR-SWB-BH12.pdf Technical PDF SSL-100-ASR-SWB-BH12.pdf
30 Tread Width (mm) 30
-20 min to + 60 max Temperature Range -20 min to + 60 max
12 Bolt Hole Size 12
A85 Hardness of Tread A85
240 Max Load Capacity of 4 Castors 240
106 Swivel Radius 106
134 Total Castor Height 134
Grey Wheel Colour Grey
Antistatic Rubber Wheel Material Antistatic Rubber
Grey Antistatic Wheel Centre Grey Antistatic
100 Wheel Diameter (mm) 100
